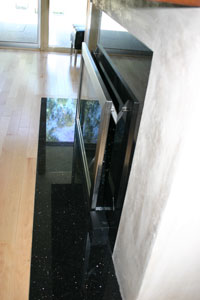

The fireplace below is in Pasadena, California. This fireplace is a two sided fireplace with a remote control, two stainless steel surrounds, quad "H" burner, custom 2" stand off quick release brackets on the surrounds, 2" install with crushed lava rock filler, Black Reflective and it looks awesome!
These 2 pictures show the bracket system being installed.
As you can see these have been hinged.

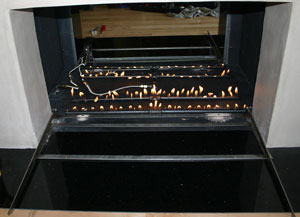

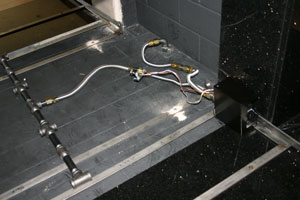

The base connection and remote control are being installed.

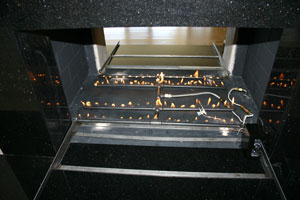

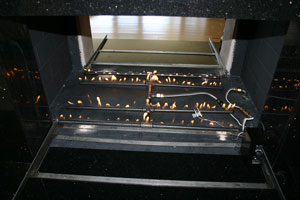

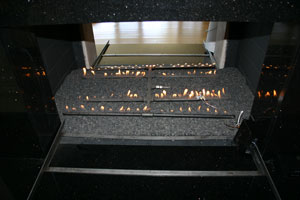

After the burner is connected we always test burn. Make sure there are no LEAKS!
For those of you who want remote controls, you can see there are a few items to hide. Once you get the glass in over the pipes and connections, it's not too bad. For this type of remote control there has to be a safety pilot light and thermo coupler with the valving system.
The flames are low at this point because the meter has to be turned up by the gas company as there is not enough pressure for this type of burner.
The crushed lava goes in now and the burners are pulled to the surface before we pour the glass over the lava and glass. Do not pour the lava up to the edges but keep it back about 3" to 4" from the edges.
If you look at the front lower right of the fireplace you can see the electronic eye of the remote control.
This surround had a front base plate with 2 pins standing up to receive the surround which had 2 holes in the same place. Then the 2 brackets lifted up to attach and hold the surrounds in place. The customer wanted this child proof, so we invented a way to do this and it turned out great.
If you will notice this surround was 2" away from the fireplace as this is the design the customer wanted. Pretty cool idea! The bracket system we created is child proof and easy to remove the surrounds as well.
Here is a picture below of the actual remote unit for the fireplace and on the right is the electronic eye which goes on the outside of the fireplace. The remote unit is shown with out the heat shield. This type of remote control has a variable flame and must have a standing pilot light.

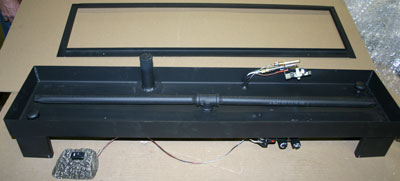

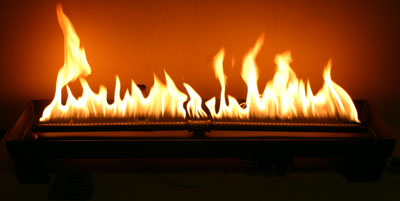

The propane burner below was made to inset flush to the floor with a remote control underneath the pan. The pan sat 5" below the surface so the glass would appear to be just above the surface. The outer ring was bolted down to keep the glass from falling underneath the burner in the event you ever had to service the burner or remote control. The tower you see is actually for the air mixer to draft fresh air to the propane before it burns.

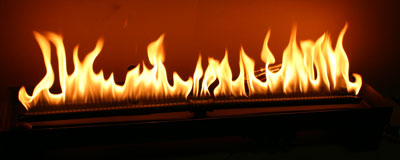

As you can see we drilled it to look like a ribbon burner. This is what was ordered by the customer.
The fireplace below has a battery operated remote controller
The fireplace below was done for Nick Cannon (now married to Mariah Carey)(http://www.nickcannon.com/) in Hollywood Hills California. We installed a remote control inside of the fireplace on the left side as you will see. The remote control was an IPI (Intermittent Pilot Ignition) so the pilot light only goes on when you turn the fireplace on with the remote control. We use a lava base filler and topper it with 1/8" black for a very fine layered look. The fireplace was coated with a high heat concrete mix to make it look wider and lower. A very contemporary look and it looks great.
The remote is on the lower left side with crushed lava all around
We have turned it on to a low flame
Now we add the 1/8" black
and now you have one very simple but unique fireplace. You almost can't see the remote because of the glass color. The remote was to go inside the left cabinet but the plumber forgot to show up, oh well. But it's done and everyone is happy.
The fireplace below is in Glendale Hills California. We installed starfire as a base with about 1 lb of Ice Ice Ice on top. Then to finish it off we installed a brass surround with bronze frosted glass. The customer loved it! She is the CEO of Fredrick's of Hollywood! Awesome house by the way.
The fireplace below was installed by the customer (Kim Clark) with a remote control, propane burner manufactured by us and topped with starfire. The fireplace was transformed form an ordinary to work of art, nice job!
The picture below has the burner being tested
This is the remote control on the lower right with the pilot light assembly
We now have fire!
The fireplace below is in Palm Springs California. We installed starfire as a base glass of starfire, painted the interior ivory white and installed brushed surround with clear glass edging.
Now it starts to come to life!
It just looked sooo good, we had to post all of the pictures!
Amazing flame work by night and below simple and nice to see by day.
This surround has 4" sides and 3" top and bottom. Every fireplace is a little bit different as we recommend a cardboard template so you can get a preview of what it will look like before hand.
The fireplace below has a starfire base with citrine, dark red orange, and orange topper with a touch of our Ice Ice Ice. This was a complete remodel in natural gas and a remote control was added with a pilot light

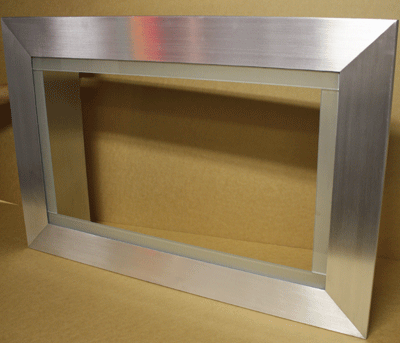

The fireplace below in in Lakeland, Florida and was installed by John Addison for his customer. The fireplace has one of our propane pan burners with a remote control. We built a brushed aluminum surround with out the inner glass per the customer request. The glass that was used was a gray base glass with black and copper ruby red on top.
As you can see the fireplace was not much to look at until we added our touch.
You be the judge, We think it turned out wonderful!
The fireplace below is a propane fireplace. A bed of crushed lava was installed and a clear base glass was used to cover it all up.
Step 1, paint it!
Step 2, cover the old brick!
Finish the face and floor, very nice!
Install the propane pan burner
Fill in and all around the pan with crushed lava rock.
On the left side you can see the gas connection which will soon be covered as well. On the right side the control cover will be covered as well. This propane pan burner was fitted with a remote control, radio frequency.
Now that your finished your ready for FIRE! Have your spouse lite it in the event they didn't follow the instructions! (just kidding again)!
The fireplace below has a bronze base with starfire on top. The customer installed a Maxitrol remote control on the right side
If they would of used more filler it could of covered the remote at least on the top portion.
Putting a ceramic pine cone in a glass fireplace defeats the purpose, you think? I would of used a a fire stone or even a fire ball.

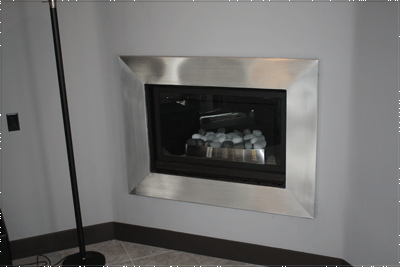

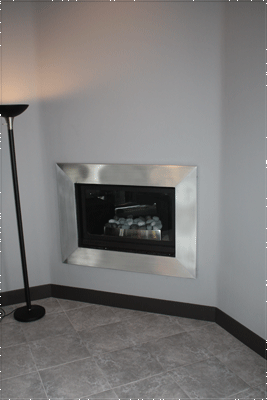

The fireplace below is a direct vent fireplace in Arroyo Grande (Pismo Beach, California). We mounted the back and then attached the face. This surround was with out a perimeter of interior glass. We usuallyborder a 2" band of glass all around the inside edge. We use aluminum for this project.

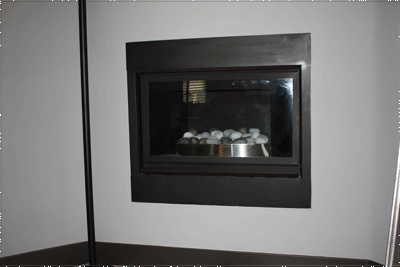

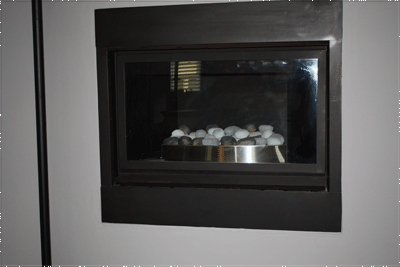

This is the standard black frame for the fireplace.

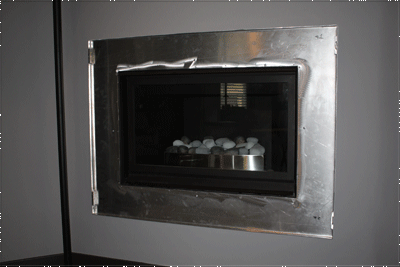

Below you can see the back of the surround attached to the fireplace.

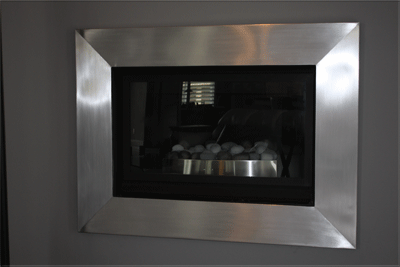

Then we just slip the front cover over and done!

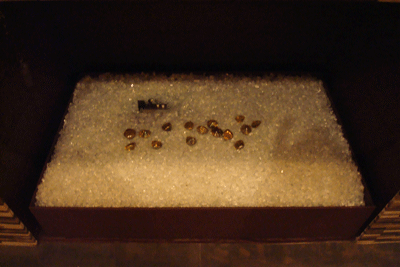

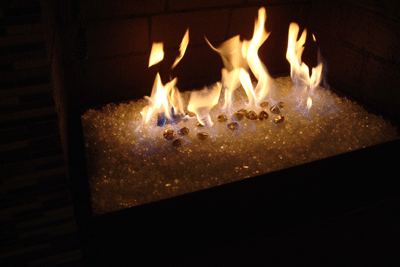

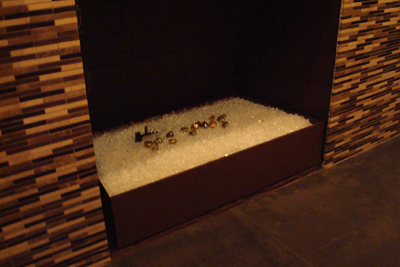

The fireplace below has a steel pan underneath to conceal the 12 volt remote control. We used a Clear base glass and topped it with a Starfire base glass and then added Amber Diamonds on the surface.
You can see the front plate that was painted to match which is removable if and when necessary to change the batteries. The legs were 4 1/2" and the pan was 2" tall. The removable front metal curtain was 6 1/2" tall.
The fireplace below had a steel pan built so we could conceal the 12 volt battery operated electronic ignition
beneath the pan. The glass that was installed was:
Clear base glass under the Starfire base glass Topped with Amber Diamonds.
Above and below you can see the solid cover as it hangs over the face to conceal the remote control ignition.

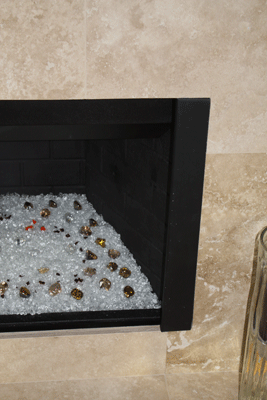

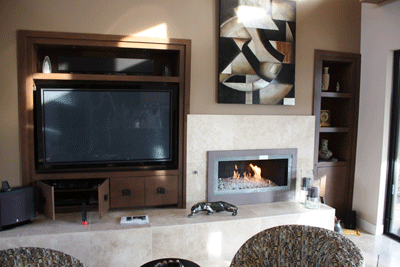

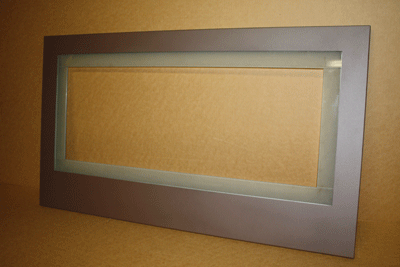

The fireplace below belongs to Robert and Rena in Palm Desert California. They choose a warm brown high heat paint too match their furniture. Here is the just finished surround:

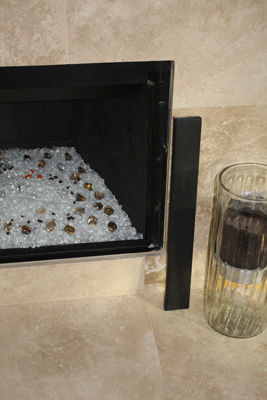

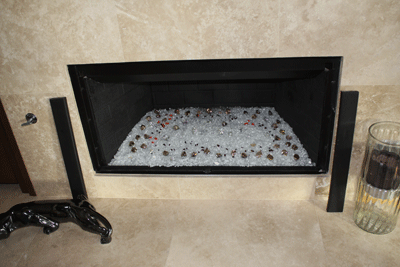

Originally we installed two metal shields to cover and hide the nasty looking side vents. On many fireplaces to keep it minimal we do just the side covers which actually looks fine and finished.

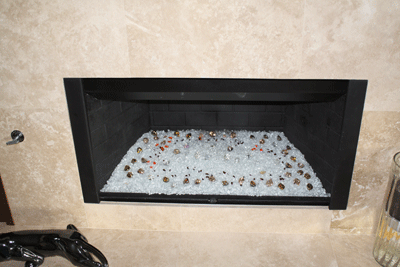

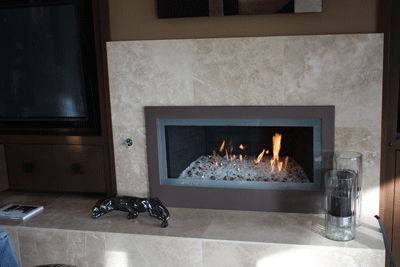

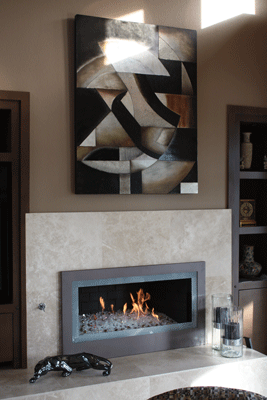

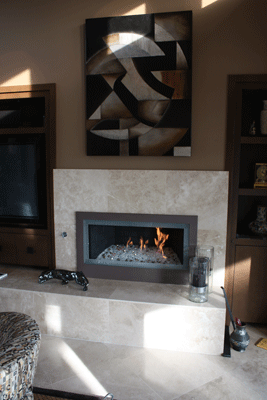

Here is the surround installed. Looks great!
We made 3" sides and top with a 6" bottom with 2" of frosted glass installed on the interior.
The surround below was installed in Riverside California By Ruben. Ruben made a template to fit his fireplace. A bit over the top but Ruben is good for that! By making a preview template you can get a preview of what it will actually look like before we manufacture it for your fireplace. We will explain as we move on:

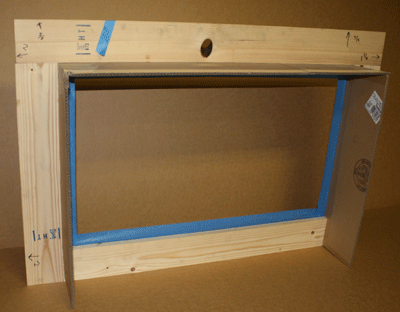

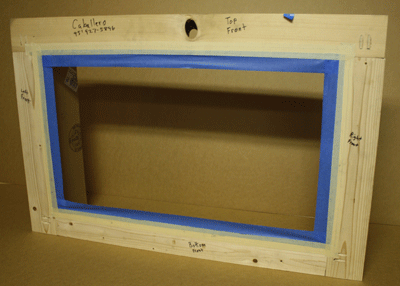

The wood and card board template. The blue tape will be frosted glass.
On the back side you can see the cover fins Ruben wanted to have installed. This was to cover what he did not want to see in the fireplace after the surround was installed. In our designs we ask what do you want to see and what don't you want to see.

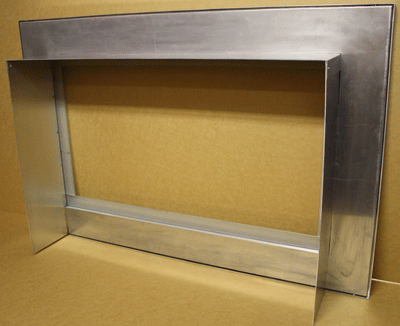

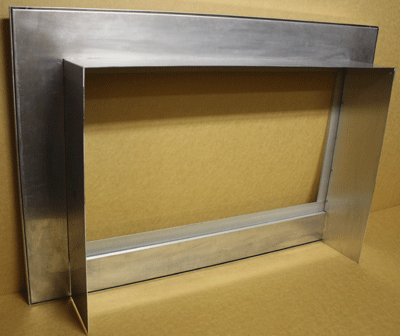

Above and below you can see the surround front finished.
Above and below you can see the back side with the fins attached for installation. We will post pictures as soon as Ruben sends them to us.
